Price: $52.33
(as of Apr 17, 2025 12:00:37 UTC – Details)

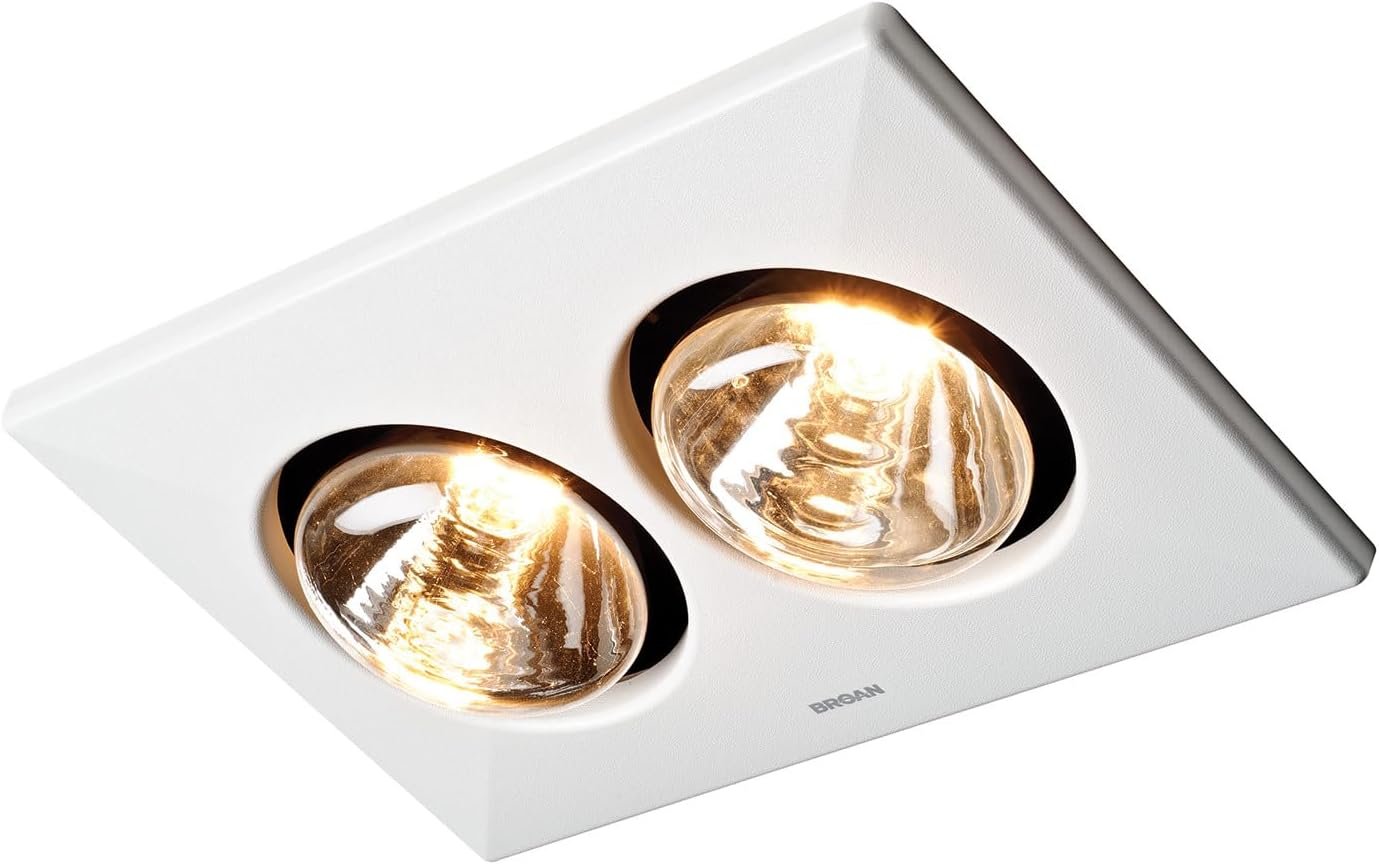

Make sure your bathroom is toasty and comfortable in the morning with the Broan 2-Bulb Heater and Fan. This high-quality heater and fan combo provides instant comfort in the bathroom without turning up the central thermostat. This Type IC heater uses two 250-Watt R40 or BR40-size infrared bulbs (not included) to deliver energy-saving warmth to your home. The 70 CFM fan provides excellent ventilation at a quiet 4.0 Sones and will keep your bath free from steam or odors. The housing is constructed of compact steel with adjustable mounting brackets that have keyhole slots and a 4″ round duct connector with tapered sleeves to make for easy installation. The attractive white grille will match perfectly to your existing bathroom decor. Control the heater and ventilation fan simultaneously or separately – whichever suits your needs. Upgrade your bathroom with the Broan 2-Bulb Heater and Fan today!
Is Discontinued By Manufacturer : No

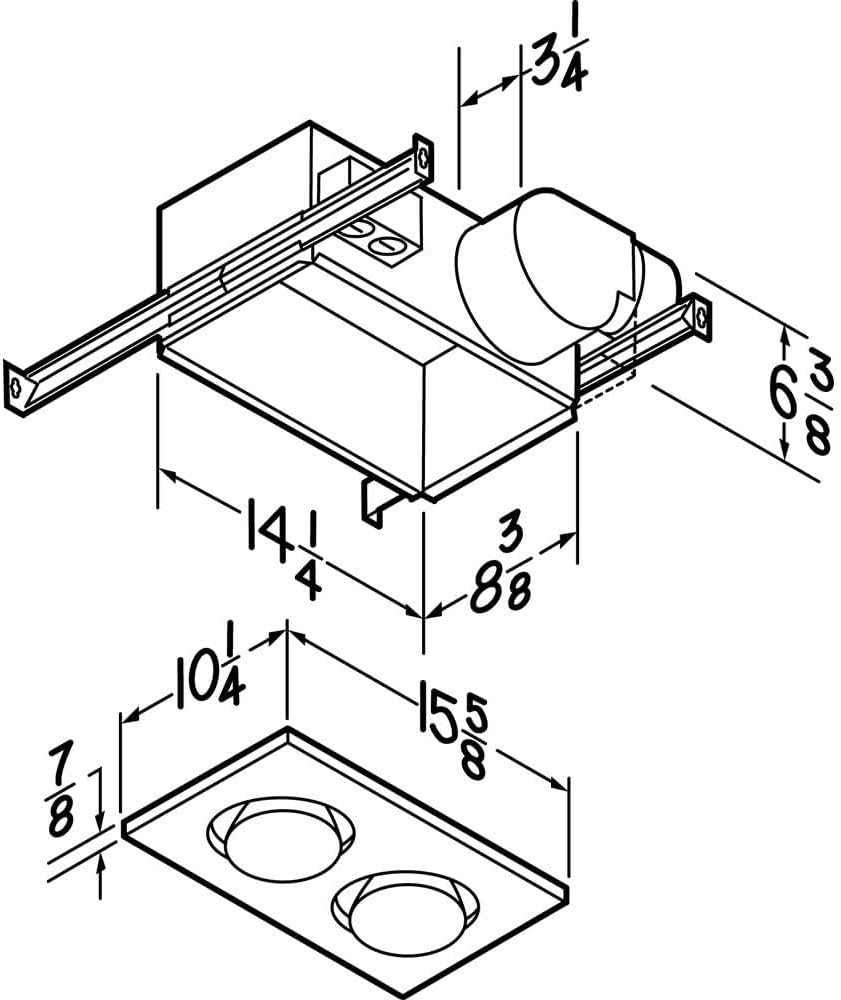

Product Dimensions : 5.63 x 10.25 x 0.88 inches; 8.56 Pounds
Item model number : 164
Department : Home & Garden
Date First Available : August 17, 2005
Manufacturer : Broan
ASIN : B000VTSN0E
Country of Origin : China
HIGH-QUALITY HEATER AND FAN COMBO: Heater and fan combo provides instant comfort to your bathroom without turning up the central thermostat for money-saving warmth
ENERGY-EFFICIENT: Heats using two 250-Watt R40 or BR40 size Infrared bulbs (not included)
EFFICIENT: Ventilation fan operates at 70 CFM and 4.0 Sones for a high-quality, quiet performance
DISCREET: Type IC (Insulation Contact) unit is installed into your ceiling so all but the bulbs and white grille shows in your room for a clean and cohesive appearance

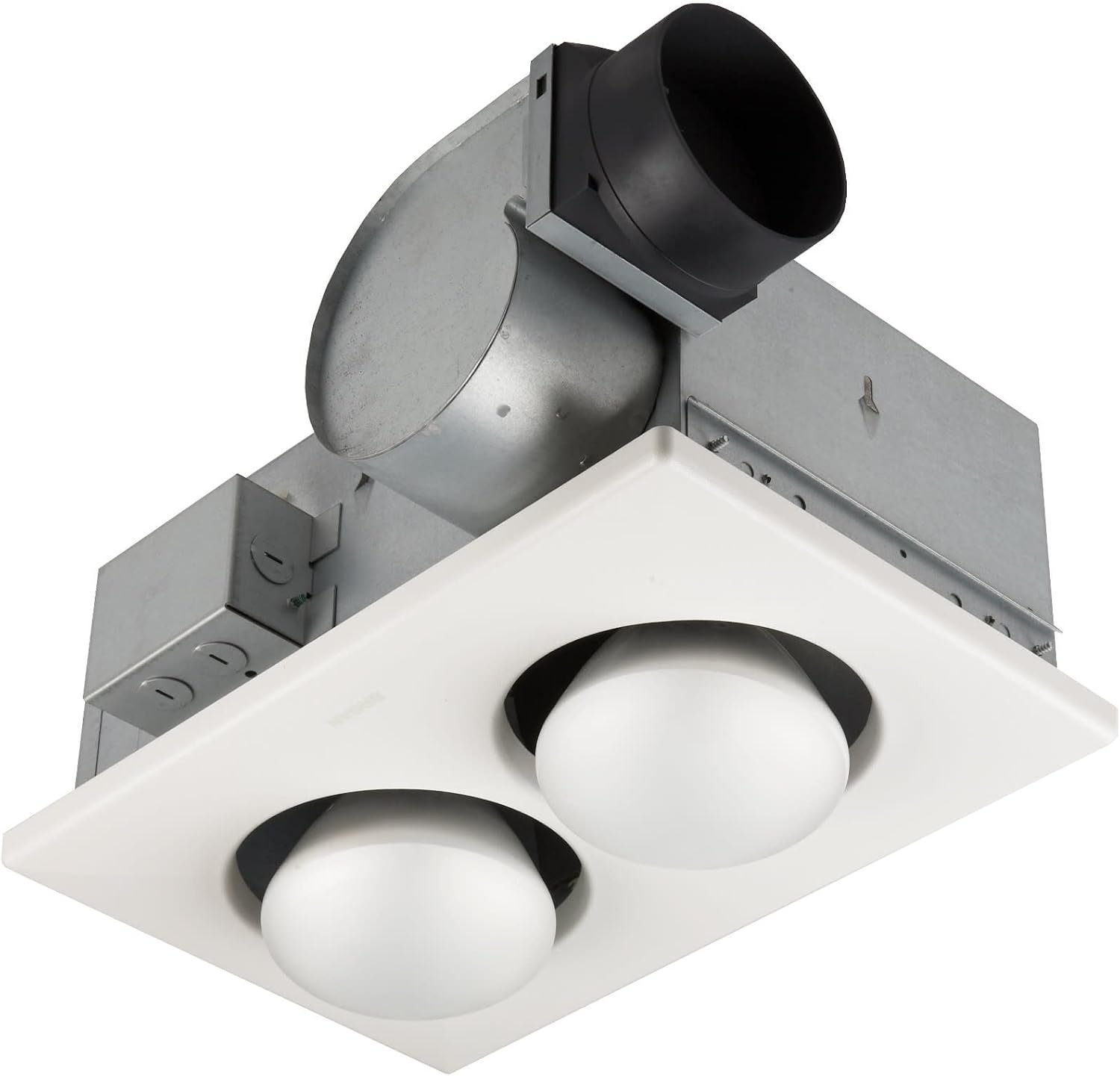

EASY INSTALLATION: Sturdy steel housing, adjustable mounting brackets with keyhole slots, plug-in permanently lubricated motor, and 4″ round duct connector with tapered sleeves make installation logical and simple
70 CFM and 3.5-Sones

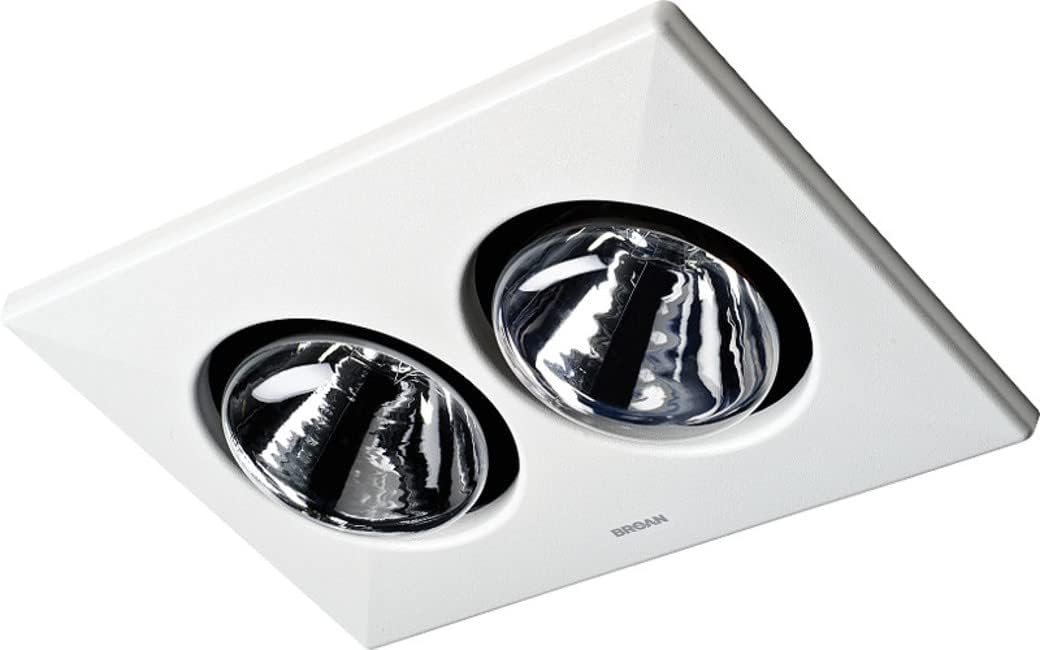

Attractive white grille
Two bulb Heater and fan with two function control available separately. 70 CFM and 3.5-Sones
Bulb not included
4.5 A
Customers say
Customers appreciate the space heater’s functionality and heat level. They find it works well and provides ample heat in the bathroom. The heat lamp warms up the shower room/toilet stall quickly, which is a welcome feature on cold mornings. Customers also like the value for money, look, and ease of replacement. However, some have mixed opinions on installation, noise level, and quality.
AI-generated from the text of customer reviews
LG –
Perfect to warm up the area outside a walk-in shower.
These are low profile and work well.
Scott D. Charlton –
Wiring help
This is for the Model 164 with two lights. The installation instructions are for new construction only. I made a cardboard template to cut out a hole in the ceiling. The wiring was a bit confusing at first. Here are the wire identifications: Red: one of the lights, Black: the other light, Yellow: heat? (this was confusing since the heat comes from the lights), Blue: exhaust fan. With two 250 watt red/infrared bulbs you get adequate heat. I don’t think the single bulb would be enough.
Robert Y –
Pretty Good Value
I bought this item to replace a 25 year old fan/light/heater in a very small bathroom. It has two light sockets so I put a light in one and a clear heat lamp in the other. The heat was very minimal, so I went to the store and bought a red heat lamp to replace the light. That left me with a clear heat lamp and a red heat lamp. The heat is acceptable now with both on. We’ll see when winter rolls around again. The clear heat lamp does double duty as the light. Everyone who has seen it likes the modern look. The fan works well and is a lot quieter than the old one.As for the install, the instructions with the unit has a wiring diagram, but did not tell me what color wire went with each feature. I’m not an electrician so it was hard to figure it out. I had a friend come over and look at it, and we figured this out:Black and Yellow – Heat lamp (One of these wires is the overload that turns on the fan if it gets too hot.)Blue – FanWhite – Neutral (There are two of these)Red – Light/other heat lampGreen – GroundOnce we got past that, the installation was pretty simple, although the unit was smaller than the one I took out so a little sheet rock work was needed. We also had a pipe in the attic that prevented us from fitting the unit easily between the joists so we had a cut about three inches from the braces to make it slide in under the pipe. Overall for the money, this is a nice unit. I bought two, so I’ll be installing again in another bathroom soon.
nkr1 –
Nice and warm even on a higher ceiling
Replaced a weak fan that was over the toilet, went up into the attic to stabilize & separated switches for fan/heat. Smooth fan sound and made a big temperature difference while soaking in our tub. Gives a warm glow output thatâs not too bright, great buy!
Teresa Crolius –
Noisy…Difficult to replace old rough in…
Out of round fan wheel makes annoying pulsing sound.I replaced the same model Broan, except new fan housing is on the opposite side of rough in. Broan no longer makes ccw replacement motor wheel for my original opposite side fan configuration. So I had to replace the whole rough in.The new model hanging brackets screwed on/off from inside the rough in, so I thought I might be able to use the same sheet rock cut out, but the new fan housing on the opposite side of the rough interfered with the floor joist. So, I still needed to cut out more sheet rock anyhow. If I did this again, I would have gotten a quieter fan assembly…and just planned to cutout/ replair more sheet rock.
David Burke –
Perfect fit
Works great was as advertised
Sanford –
Great light & fan. Instructions might be difficult for some.
Great price. Easy to replace my existing broken exhaust fan from attic side of ceiling. Used triple switch to wire lights and fan individually. Wiring instructions are vague on how exhaust fan thermostat works so separating them might be difficult for those unfamiliar with electrical. So, if you can’t figure it out, you probably shouldn’t be fooling with wiring anyway. Also, the plastic damper door on exhaust is very flimsy, mine broke when I tried to put it back together after it fell out while in the attic with low light. I should have taken my time to reinstall door because I had to modify the broken door to fit upside down which took a couple of hours. The lights and fan work great once installed correctly. The unit I bought was used/new/open and slightly bent, but easy to straighten. Happy with outcome.
Kirwan Fox –
Same great design..after all these years… with a few updates.
I originally bought this for parts to swap out with my older NuTone 9427p, but unfortunately, the cover is not supplied with the older V-type springs. The older style cover, NuTone S89260000, is available but I only found it for $85 on Amazon. The fan motor does appear however to be an easy swap if you have the old mounting bracket. The bulb mounts in the newer unit appear to be better quality, so if you can figure out how to swap those too, it will keep the bulbs from flopping around as much.
Richb2014 –
Parfait pour la salle de bain
Anji –
well made
E. Langley –
Like: works great. Like the choice of single heat/light or double heat/lightDislike: The housing could be more aesthetically pleasing
Pheonix –
Relativement silencieux câest un bon achat
Stephen Hynes –
Perhaps the worst heat lamp fixture ever. The installed fan is for cooling the fixture and switches on with a thermostat as required. Often. It was annoying to begin with but as time has past (about 2 years since install) the fans (I have 2) have degraded and sound like industrial ventilators. They can be unplugged in the fixture and all seems well until the heat fuse blows and the fixture goes dark. How to fix that I have yet to discover.
